Основная Информация.
Модель №.
steel grating
Материал
Углеродистая сталь
расстояние между вертикальными штангами
30 мм
расстояние между горизонтальными полоске
50 мм/100 мм
цинковое покрытие
более 300 г/м2
толщина
3 мм
время выполнения
15 дней
транспорт
непосредственно на судне
Транспортная Упаковка
in Bulk in Bundles on Palet
Характеристики
G203/30/100
Торговая Марка
YIXUN
Происхождение
Китай
Код ТН ВЭД
72084000
Производственная Мощность
1000 Sqm/Day
Описание Товара

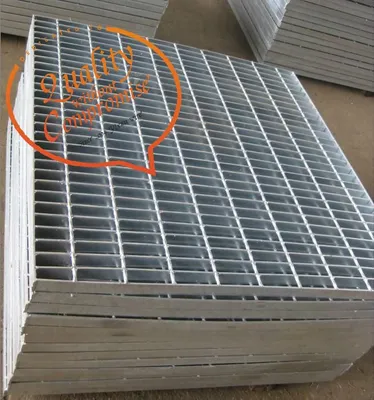

Hot Dipped Galvanized Serrated Steel Grating Panel
Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
Steel grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects and environmental projects.
| Specification list of Steel Grating | |||||||||
| Series No | Vertical Bar Spacing | Horizontal Bar Spacing | Specification of Supporting Flat Steel Width X Thickness (mm) (mm) | ||||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 | |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 | |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |||
| 3 | 60 | 50 | - | G253/60/50 | G323/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||||
| 4 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G500/30/100 | G555/30/100 | G605/30/100 | |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G500/30/50 | G555/30/50 | G605/30/50 | |||
| 5 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G500/40/100 | G555/40/100 | G605/40/100 | |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G500/40/50 | G555/40/50 | G605/40/50 | |||
| 6 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G500/60/50 | G555/60/50 | G605/60/50 | |
